Rootes Manual WSM.143/144 Section N (Electrical Equipment)

Page 17

---

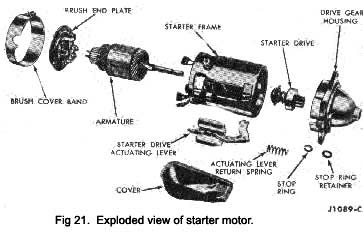

3. Refit the solenoid coil and retainer and bend the tabs to retain the coils to the frame. 4. Solder the field coils and solenoid wire to the starter terminal.

7. Position the earth brushes to the starter frame and install the retaining screws as Illustrated in Fig. 22. 8. Position the starter brush end-plate to the frame, with the end plate boss in the frame slot.

5. Check the continuity and earth in the assembled coils. 6. Position the solenoid coil earth terminal over the nearest earthing screw hole.

9. Apply a thin coating of lubricant on the armature shaft splines. Install the starter motor drive gear assembly to the armature shaft and install a new retaining stop ring. Refit the stop ring retainer.

---

---
