Rootes Manual WSM.143/144
Section N (Electrical Equipment)
Page 23

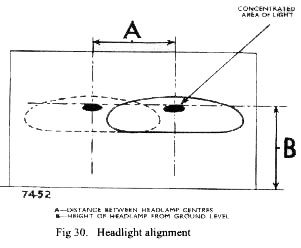

BEAM SETTING USING THE AIMING BOARD

Proceed as follows

1. Ensure that the car is parked (handbrake on) on level ground.

2. Ensure that the front of the car is parallel with the aiming board which is to be positioned at a distance of 25 ft. (7.62 in.) from the car.

3. Either load the car with two adults or simulate this load by adding weights to the car.

4. Clean the glass of one lamp.

5. Adjustment is to be commenced at one lamp mask the remaining lamp.

6. Turn the adjusting screws clockwise to their full extent.

7. With the lamp Illuminated In the main beam condition, turn the adjusting screws anti-clockwise as necessary until the required setting is achieved.

8. Remove the mask from the remaining lamp and mask the lamp which has been set.

9. Clean the glass of the lamp.

10. Turn the lamp adjusting screws clockwise to their full extent.
11. With the lamp illuminated in the main beam con-dition turn the adjusting screws anti-clockwise as necessary until the required setting is achieved.

12. Re-check the setting of both lamps.


SIDE LAMPS AND FRONT FLASHER BULBS
(Refer to Fig. 31)

To renew a defective bulb, remove the two screws and detach the white and amber lenses. Renew the defective bulb(s) and refit the lenses, making sure that rubber seat is correctly located ; secure the lenses with the two screws.
