Page 6
Rootes Manual WSM.143/144
Section F (Front Suspension)

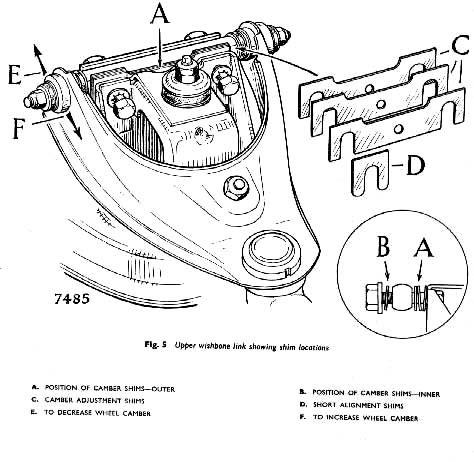

SHIMS (Fig. 5)

The shims used in the building of the front suspension assembly are of two types:—


1. Camber adjustment shims

These shims are positioned to the upper fulcrum pins and control the camber angle. By moving the shims from one side of the upper fulcrum pin to the other, the camber angle can be altered.
These shims are available in two thicknesses:—

(I) 0.104 in. (2.6 mm.) equals 30’variation in
(ii) 0.064 in. (1.6 mm.) equals 20’ camber angle

2. Short alignment shims

These shims are positioned at either end of the camber adjustment shims only when the need arises to align the two swivel bearings in the outer ends of the wishbone links. They must be refitted to their original positions should they ever be removed.
