1st Re-issue
Page 8
Rootes Manual WSM.143/144
Section E (Gearbox)


Cam and shaft seals
1. Remove the attaching nut, lock washer and flat washer from each shift lever and remove the three levers.
2. Remove the three cams and shafts from inside the case.
3. Remove the 0’ ring from each cam and shaft (Fig. 12).
4. Dip the new 0 ‘ rings in gear lubricant and install them on the cam and shafts.
5. Slide each cam and shaft into its respective’ bore in the case.
6. Secure each shift lever with a flat washer, lock washer and nut.

Input shaft bearing

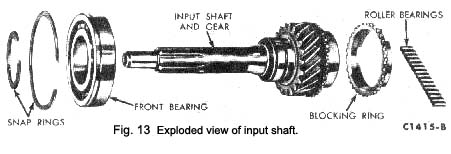

1, Remove the snap ring that secures the bearing to the shaft. (Fig. 13).

2. Press the input shaft gear out of the bearing with the tool as shown in Fig. 14.

3. Press a new bearing on to the input shaft with the tool as shown In Fig. 15.
4. Secure the bearing with a snap ring.

Editors Note: Our thanks to Jim Boynton for contributing this page.
