1st Re-issue
Page 20
Rootes Manual WSM.143/144
Section K (Brakes)

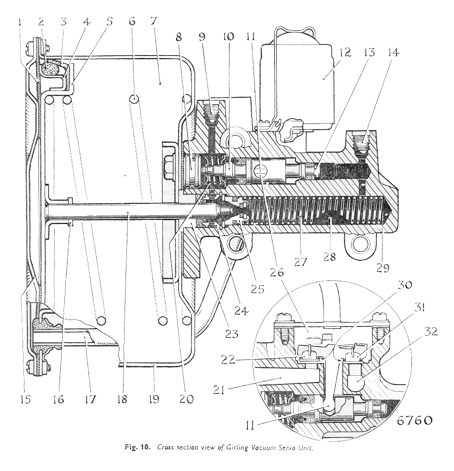

1   END COVER GASKET
2   PISTON BACKING RING
3   PISTON SEAL
4   PISTON SEAL RETAINER
5   PISTON
6   PISTON RETURN SPRING
7   CONSTANT VACUUM
8   END PLUG
9   HYDRAULIC INLET PORT
10  VALVE CONTROL PISTON, LOW PRESSURE END
11 " T " SHAPED LEVER
12  AIR FILTER ASSEMBLY. ALTERNATIVELY THE AIR
  FILTER COVER IS HELD BY A SINGLE CENTRE SCREW.
13  VALVE CONTROL PISTON, HIGH PRESSURE END
14  HYDRAULIC OUTLET PORT
15  END COVER
16  PISTON BUFFER 		17  TRANSFER TUBE
18  PISTON ROD
19  VACUUM CYLINDER
20  CONTROL PISTON SPRING
21  VACUUM INLET
22  VACUUM VALVE
23  BEARING BUSH
24  NYLON SPACER
25  OUTPUT PISTON
26  VALVE CHEST
27  OUTPUT PISTON SPRING
28  OUTPUT CYLINDER
29  CAST BODY
30  VALVE SPRINGS
31  AIR VALVE
32  AIR INLET

Editors Note: Our thanks to Bob Palmer for contributing this page.
