1st Re-issue Page 2

Rootes Manual WSM.143/144 Section H (Rear Suspension)

---

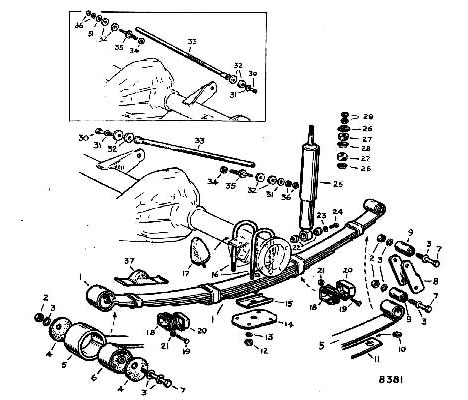

Fig. 1. Components of rear suspension (inset earlier models)

1 REAR SPRING 2. NUTS 3. WASHERS 4. RUBBER WASHERS 5. MAIN LEAF 6 BUSH SPRING EYE 7 SHACKLE BOLTS 8 SHACKLE LINKAGE 9 BUSHES 10 THRUST BUTTONS 11 SPRING LEAVES 12 NYLOC NUTS

13 WASHER 14 CLAMP PLATE 15 RETAINER PLATE 16 "U" BOLT 17 BUMP RUBBER 18 RUBBER LINER 19 BOLT 20 CUP 21 NUT 22 RUBBER WASHERS 23 WASHER 24 BOLT

25 DAMPER 26 WASHER (STEEL) 27 WASHER (RUBBER) 28 SPACER (STEEL) 29 LOCKNUTS 30 BOLT 31 WASHER 32 BUSHES 33 PANHARD ROD 34 LOCKNUT 34 ADJUSTER SCREW 36 LOCKNUTS 37 TORQUE REACTION RUBBER (From Chassis No. B9473579 onwards)

Editors Note: Our thanks to Jim Boynton for contributing this page.

---

---
