Repairing Jaeger and Smiths Speedometers

An Article by Anthony Rhodes Copyright 2000

---

Page 14

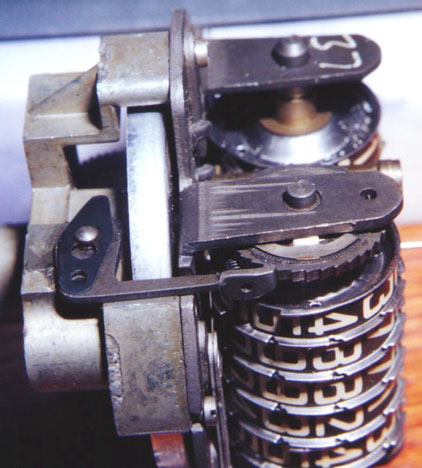

Figure 19: A view of the left of an "Old Style" speedometer. Note the all-metal construction. The shiny thin metal against the left side of the odometer drive gear is the combination retaining washer/ratcheting lock. The number "37" (written by the manufacturer) on the frame is the number of teeth on the odometer drive gears.

The following pages provide handy tables for your use.
Use the Navigation Arrows at page bottom.

This completes the article about speedometer calibration, maintenance, and repair. If you have any further questions, please feel free to Email me at ARhodes@compuserve.com.

Tony Rhodes

---
