Tiger Fuel Gauge Restoration,
or,
"Put on a Happy Face!"
An Article by Joe Parlanti
March, 2002
Page 4

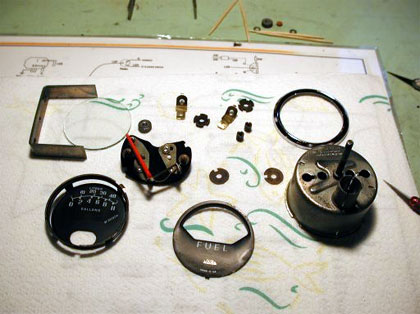

It’s time to put everything back together. Here’s a photo of all of the parts:
- Assembly
Assembly is the reverse of the disassembly taking care once again with the movement and inner face. You’ll probably need to replace the O-rings. I purchased new ones from Barrie Robinson in Canada. He sells a complete set for the Tiger that consists of 14 O-rings (2 large & 4 small Jaeger’s gauges) for US$17 including postage.

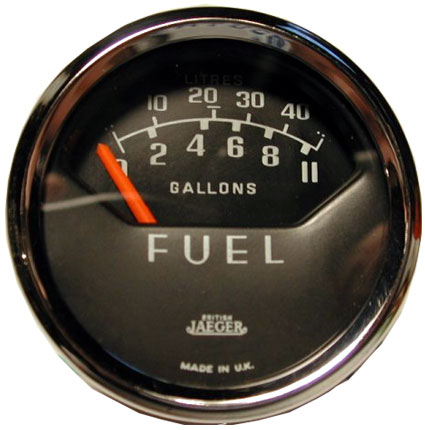

That’s about it. Here’s a photo of the finished product. The whole operation does not take long and the results are very satisfying as you can see from the “after” picture shown below.
- Editiors Note: The source information for all of the Tiger and Alpine O-rings, both internal and external, are listed on the next page. This is neither an advertisement, nor an endorsement, but a listed resource, as this is a non-commercial site
Good luck.
Joe Parlanti
**
