		<p><font size="5"><b><i>&quot;Lucas, Prince of the</i></b></font><br>
			<font size="5"><b><i>Intermittent Windsheild Wiper&quot;<br>
						or,</i></b></font><br>
			<font size="5"><b><i>How to Make a Real One!</i></b></font></p>
<p><font face="arial,helvetica" size="-1"><b>An Article by </b><b><a href="mailto:edstiger@charter.net">Ed Esslinger</a></b></font><font size="-1"><br>
				<br>
				<b>June, 2002</b></font></p>
<hr width="90%">
<p><b><font size="-1">Page 6</font></b></p>
	<div align="left">
	<ul>
			<li><font size="-1"><b>HEADLIGHT CONTROL<br>
					</b><br>
					<br>
				</font>
		<li> Due to the request by the Alabama highway Patrol (lights MUST be on if you are driving in the rain, even during daylight hours) I have decided to add an output circuit to my Sunbeam wiper controls to automatically turn on the lights, any time the wipers are running and switch them off when the ignition is turned off.(if you left the wiper switch on) They will not turn on again unless the wiper is returned to the off position first. <br>
			<br>
			The other features of the wiper control will remain the same.The normal operation of the lights will not be affected. <br>
			<br>
			All wiper controls I build for Sunbeamers in the future will have this added feature. (The output circuit does not HAVE to be used if you don't want to use it.)<br>
			<br>

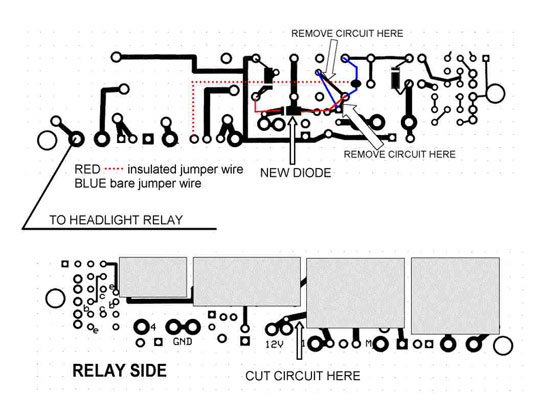

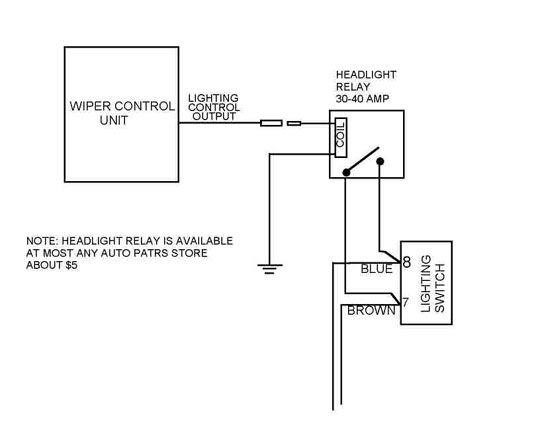

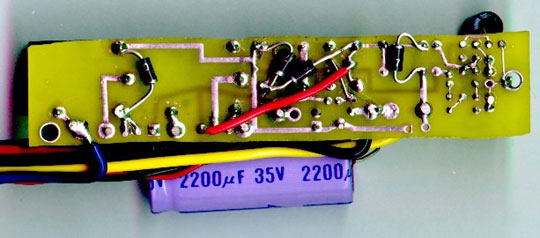

			 For those of you that have a wiper control and want the information on<br>
			how to add the circuit, I will be happy to e-mail you the information, but it is provided, schematically, below. <br>
	</ul>
	<p><img src="HEADLIGHT-MOD-INSTRUCTIONS.jpg" border="0"></p>
	<p><img src="HEADLIGHT-MOD-2.jpg" border="0"></p>
	<p><img src="HEADLIGHT-BLOCK-DIA.jpg" border="0"></p>
	<p><br>
	</p>
	<div align="left">
		<ul>
			<li><b>I will be making some of these up for friends and can </b><b>build a few more.</b><br>
				<br>
				<b>If anyone is interested click on my &quot;hot-link&quot; name </b><b>(below) to send me an E-Mail.<br>
				</b>
		</ul>
	</div>
	<p><font size="-1">Good Luck,<br>
		</font></p>
	<p><a href="mailto:edstiger@charter.net"><i><b>Eddie (Cool Cat) Esslinger</b></i></a></p>
